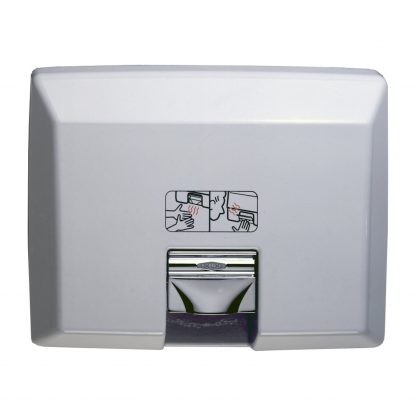

Cast Iron Recessed Hand Dryer

B-750_230V Category: Brand:

Cover: One-piece, minimum 1/8” (3mm) thick, white iron-casting
Drying Time: 15 – 25 Secs
Motor: Universal, 1/10 hp, 6200 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end. Equipped with automatic thermal-overload switch.
Heating Element: Coiled nickel-chrome heating element is mounted in mica frame and protected by an automatic thermal-overload switch.
Electronic Control: Infrared sensor automatically turns dryer on when hands or self-returning nozzle are held under airoutlet opening and across path of sensor. Electronic sensor has automatic shutoff approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening.
Warranty: 10 Years Limited Warranty.
Dimension: 385 (W) x 300 (H) x 90 (Recess) mm. 100mm projection on the wall.

B-750_230V Category: Brand:
  • Technial Data: 230V__B-750230V_td.pdf
  • Bim Object: 230V__BIM-Hand-Dryer_Bobrick_AirCraft-Recessed_B-750.rfa
  • Care and Maintenance: 230V__Bulletin-TB-21_Cleaning_and_Maintenance_of_Stainless_steel.pdf
  • Cad: 230V__CAD-B-750.dwg
  • E catalog: 230V__E-Catalogue_BobrickInternational.pdf
  • Installation Guide: 230V__InstallationInstruction-750-69.pdf
